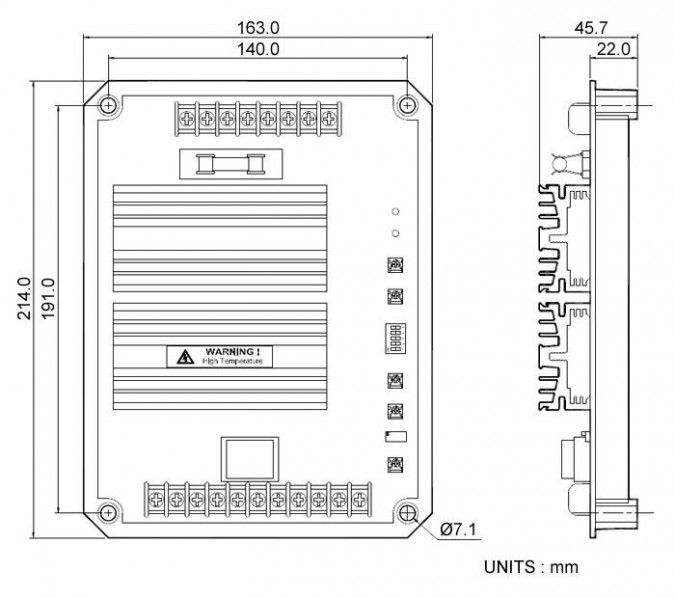

SP POWERWORLD ADVR-12 - VR6

Sensing Input Voltage 180~520VAC single phase DIP switch selectable Frequency 50/60Hz jumper selectable Power Input Voltage 100~300 VAC single phase or three phase Output Voltage Max. 125VDC @ 220VAC Current Continuous 12A, Intermittent 25A for 10 Sec. Volts Regulation < ±0.5% (with 4% engine governing) Voltage Build-up Residual volts at AVR terminal > 6VAC Over Excitation Protection Inverse-time 125±5VDC @ 220VAC External Volts Adjustment 10 K Ohm 1 watt trimmer Unit Power Dissipation Max. 8 watt Soft Start Ramp Time 4 Sec. EMI Suppression Internal electromagnetic interference filtering Thermal Drift 0.03% per °C change in AVR ambient Under Frequency Protection (Factory Setting) 60Hz system presets knee point at 55Hz 50Hz system presets knee point at 45Hz Environment Operating Temperature : -40~70 °C Storage Temperature : -40~85 °C Relative Humidity : Maximum 95% Vibration : 3G @ 100~2KHz AVR Controls Function VOLT : Voltage Adjustment STAB : Stability Adjustment U/F: To Set the U/F Knee Point (*U/F: Under Frequency Protection) DROOP : Droop Adjustment TRIM : Analogue Input Adjustment DIP : U/V Rate Set O/E LED : O/E Protection Indicator (*O/E : Over Excitation Protection) U/F LED : U/F Protection Indicator Dimensions 214.0 (L) x 163.0 (W) x 45.7 (H) mm Weight 1130g ±2%
