Air Circuit Breaker Type (ACB) Transfer Switch
ACB ATS Air Circuit breaker type 3 pole / 4 pole Automatic Transfer Switch - Starting from 800Amp to 6300Amp. Customers can select from desired brand and capacity ACB to be installed. The Standard ACB type ATS package includes ATS-01 (programmable ATS controller), TSP-01 (ATS Transformer Module), ACB (Air Circuit Breaker), all the connection harness and indoor enclosure (outdoor type is optional).
For GBP, EURO or USD pricing please contact us:
Sales: james.daff@sp-powerworld.com
Office: info@sp-powerworld.com
Tel: +44 (0) 115 923 2568 (United Kingdom)
Tel: (24-hour) +44 (0)7484709956 (United Kingdom)
Features
- Modular design, for quick and easy component repair & replacement with emergency manual override
- ATS-01 PLC -- ATS control module with total voltage monitoring/protections plus integral 7 day exerciser
- TSP-04 Transformer Module -- worldwide voltages selection by simply moving plug connectors
- The ATS is made with 2 interlocked ACB switches with individually integrated High Short Circuit Breaking Capacity & OCPD*1 optional ground fault trip available
- ACB can be ordered rack or fixed mounted
- Complies with IEC60947-6-1 Requirements*2
<div class="anno"><ul><li><span class="red">*1</span> <span class="annobtxt">OCPD :</span> Over Current Protection Device</li> <li><span class="red">*2</span> <span class="annobtxt">IEC60947-6-1 Requirements :</span><ul><li><span class="annobtxt">IEC60947-6-1 Class CB :</span> ATS provided with over current releases and the main contacts of which are capable of making and are intended for breaking short circuit currents.</li> <li><span class="annobtxt">IEC60947-6-1 Utilization Category AC-33A :</span><ol><li>Frequent operations.</li> <li>Motor loads or mixed loads including motors, resistive loads and up to 30% incandescent lamp.</li></ol></li></ul></li></ul></div>

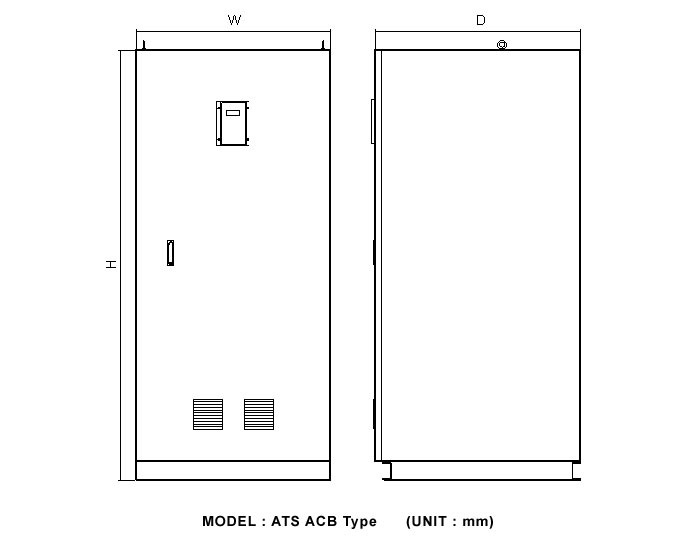

Dimensions
Enclosure P/N. | CA-3PACB | CA-4PACB |
---|---|---|
H | 2150 mm | 2150 mm |
W | 1000 mm | 1200 mm |
D | 1000 mm | 1200 mm |
Thickness | 2.0 / 3.0 mm | 2.0 / 3.0 mm |
Fixed Type | Floor | Floor |
Wire Portal Dimensions | Bottom Open | Bottom Open |
IP Class | IP33 | IP33 |
Outdoor Enclosures | Please contact us if rain-proof (for outdoor use) enclosure is needed. |
